How Does a Pool Sand Filter Work?

A pool sand filter works by pushing water from the pool pump through a tank filled with graded silica sand. Dirt and debris get caught between the sand grains as water passes down through the bed, and cleaned water exits through pipes at the bottom of the tank and returns to the pool. The same angular grains that catch debris during normal operation also let go of it when the water direction is reversed during backwash.

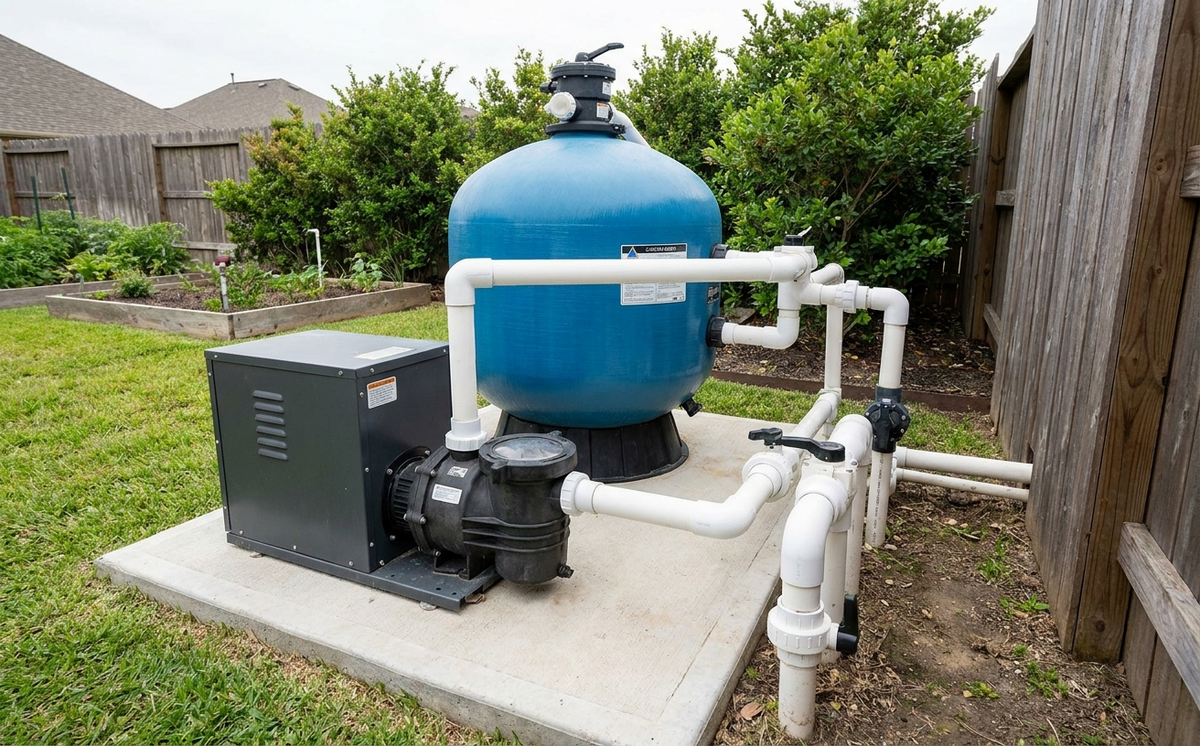

The filter sits between the pump and the return jets in the pool's circulation loop. Water leaves the pool through skimmers and the main drain, passes through the pump, enters the filter, and returns clean through the return jets. Silica sand captures particles down to about 20 to 40 microns, fine enough for most routine pool debris (dirt, pollen, dust, body oils, small algae fragments) but coarser than what a cartridge or DE filter can trap. Sand filters are the most common residential pool filter because the media is cheap, the system runs for years with minimal intervention, and cleaning is a 15-minute task rather than a full filter teardown.

How does the water actually get filtered?

The pump pushes pool water into the top of the filter tank. Water flows down through the sand bed, and dirt and debris get mechanically trapped in the narrow channels between sand grains. Clean water reaches the bottom, enters the laterals through their slots, combines in the central standpipe, and exits the filter back toward the pool.

The filter gets more effective as it gets a little dirty. A fresh sand bed filters less efficiently than one that has been running a few days, because a thin layer of captured debris on top of the sand (called the filter cake) traps finer particles than the sand alone. This is why backwashing too often can make the water worse, not better.

What is inside a pool sand filter?

The tank is a sealed pressure vessel, usually fiberglass or reinforced polymer, holding the sand and water. Tanks are filled about two-thirds full with sand, leaving room for the sand to lift during backwash.

The sand bed is #20 pool-grade silica sand, with grains of 0.45 to 0.55 mm. The grains are deliberately angular, not round, which is what makes them trap particles. Play sand or construction sand will not work because the grains are too round and too fine.

The laterals are slotted plastic arms at the bottom of the tank, arranged like spokes on a wheel. They let filtered water out while keeping sand in, with slots narrower than the smallest sand grain.

The multiport valve sits on top or on the side of the tank and controls water flow direction. Six positions are standard: Filter, Backwash, Rinse, Waste, Recirculate, and Closed.

The pressure gauge mounts on the filter head and is the indicator that tells you when to backwash. A clean filter reads somewhere between 10 and 20 PSI depending on the pump and plumbing. When the gauge reads 8 to 10 PSI above that clean baseline, the sand has loaded up with debris and needs flushing.

Why and how do you backwash a sand filter?

Backwashing reverses water flow inside the filter to flush trapped debris out to waste. It is needed because the filter cake that makes filtration more effective also restricts flow as it thickens.

In Backwash mode, water enters the tank from the bottom through the laterals, flows up through the sand bed, and lifts the sand about 7 inches off its seated position. Trapped debris releases and exits through the waste line rather than returning to the pool. Run the pump for 2 to 3 minutes, watching the sight glass until the water runs clear.

In Rinse mode, water enters from the top again (filter direction) but still exits through the waste line. This re-seats the sand bed and flushes any dirt dislodged into the plumbing above the sand. Run for about a minute.

Switch the valve back to Filter and note the new clean pressure. Mark it on the tank so the next backwash trigger point is easy to spot.

A full backwash uses 250 to 400 gallons of pool water. Always turn the pump off before moving the multiport valve handle, and only turn it clockwise, even when returning to an earlier position. Moving the valve under pressure damages the seal inside.

How often should you backwash a sand filter?

Backwash when the pressure gauge reads 8 to 10 PSI above the clean baseline, not on a fixed schedule. For most residential pools during swim season this works out to once every 2 to 4 weeks, but trust the gauge, not the calendar. Heavy use, storms, algae treatment, and trees near the pool all shorten the interval.

Do not backwash too often. A weekly backwash before the PSI trigger has hit strips off the helpful debris layer that improves fine-particle capture, and cloudy water can result. Wait for the trigger.

How long does sand last in a pool filter?

The filter tank itself can last 15 to 25 years with reasonable care. The sand inside is a separate component and typically needs replacing every 5 to 7 years, though many pools run longer than that with good maintenance and light chemical use.

Sand loses effectiveness over time because the grains slowly wear down, lose their angular edges, and start to let finer particles through. At that point the water stays cloudy even after a clean backwash, and the pressure may stay high.

Signs that the sand is worn out include cloudy water after proper backwashing, pressure that stays elevated after flushing, short filter cycles (needing backwash more than once a week), and clumped or channeled sand visible when the tank is opened. Biguanide (Baquacil) sanitizers clog sand fast enough that those pools usually need a sand change every year. Heavy use of clarifiers, polyquat algaecides, and chronic calcium scale also shortens sand life by clumping particles that gum up the bed.

Replacing sand takes 1 to 2 hours: drain the tank, scoop or vacuum the old sand out carefully, stuff a rag or sock into the top of the standpipe so no sand falls down it during pouring, fill halfway with water to cushion the fragile laterals at the bottom, pour fresh #20 pool-grade silica sand to about two-thirds of tank capacity, remove the rag, and prime the filter on Rinse before the first Filter run.

Is a sand filter better than a cartridge or DE filter?

Sand filters are the simplest and cheapest to own but filter the least finely. Each filter type trades clarity for maintenance differently.

Sand fits owners who want low upkeep and accept slightly less clarity than a DE or cartridge filter. Cartridge fits smaller pools and water-restricted areas, since there is no backwashing. DE fits owners who want the clearest possible water and are willing to add fresh DE powder after each backwash.

What are the disadvantages of a sand filter?

Three drawbacks stand out.

Filtration is the coarsest of the three filter types. Sand stops at 20 to 40 microns, so pollen, dust, dead algae spores, and chemical residues can pass through on a single cycle. Water clears on repeated passes, but a sand filter will never match the near-instant clarity of a cartridge or DE filter.

Backwashing uses 250 to 400 gallons per cycle. The fresh tap water that refills the pool dilutes chemistry and needs rebalancing, which is why pools in drought zones and water-restricted areas often skip sand filters.

The tank is bulky. A residential sand filter holds 100 to 300 pounds of sand and takes up more space on the equipment pad than a cartridge of similar capacity.

How do you maintain a pool sand filter?

Beyond watching the pressure gauge and backwashing on trigger, three habits keep a sand filter running well.

Run the pump long enough for full turnover. Residential pools typically need 8 to 12 hours of daily pump run time during swim season. Less runtime means debris settles on the pool floor rather than reaching the filter. During pollen season, slip a fine-mesh filter sock or nylon stocking over the skimmer basket, since sand is too coarse to catch pollen on its own.

Reduce the debris load that reaches the filter. A cordless robotic pool cleaner picks up leaves, sediment, and fine dirt from the floor, walls, and waterline before they reach the skimmer and sand bed. For most home pools up to 20 × 39 ft, the iGarden Pool Cleaner K series covers floor, wall, and waterline with a Turbo 200% mode that handles heavier loads after storms. For simpler daily pickup on smaller pools, the iGarden Pool Cleaner KN series fits the same routine role at the value tier. The sand filter still catches suspended fines in circulating water; a robotic cleaner keeps it from hitting the PSI trigger as quickly. The two systems are complementary, not alternatives.

Once a year, deep clean the sand bed with a pool-grade filter cleaner to dissolve built-up oils and calcium, and inspect the laterals and the multiport gasket at the same time.

FAQs

Can a sand filter remove algae?

Partly. Dead algae clumps get caught, but live spores and fragments pass through. A sand filter alone will not clear a green pool. Shock first, then the filter catches the dead cells during backwashing.

Do you still use chlorine with a sand filter?

Yes. A sand filter traps particles but does not kill bacteria, viruses, or algae. Chlorine or another sanitizer (salt, bromine, biguanide) keeps the water safe.

Can pool filter sand be cleaned and reused?

Yes, with a yearly deep clean using a pool-grade filter cleaner to dissolve oils, calcium, and organic buildup. Rinsing old sand for reuse in another tank is not worth the effort. Deep-clean in place until it stops responding.

What does it mean if my filter pressure is lower than normal?

Low pressure usually means the filter is not getting enough water. Check the skimmer basket, pump basket, pump lid O-ring, and impeller for debris or air leaks. A cracked pump lid or blocked skimmer is the most common cause.

Can you use regular sand in a pool filter?

No. Play sand and construction sand have rounded grains and fines that wash into the pool. Only #20 pool-grade silica sand (0.45 to 0.55 mm) has the angular shape and graded size to filter properly.

How much does it cost to change the sand in a pool filter?

DIY runs $40 to $120 for 100 to 300 pounds of #20 silica sand. A pool service adds $150 to $300 in labor. Most residential jobs total $200 to $400.

Why is sand coming back into my pool?

The most common cause is a cracked lateral at the bottom of the tank, which lets sand escape through the slots. A worn spider gasket or a misaligned multiport valve can do the same. Check the laterals first.
