How do I hook up a pool vacuum? Attach the vacuum head to the telescopic pole, connect the hose to the head, fill the hose with water to remove all air, then plug the hose into the skimmer's suction port (or the vacuum plate, if your pool has one). Start the pump after the hose is connected. Most setup problems come from air trapped in the hose or an unbalanced suction line.
How to Hook Up a Manual Pool Vacuum
Manual pool vacuums rely entirely on steady suction from the pool pump. To set up a pool vacuum, work through the five steps below.

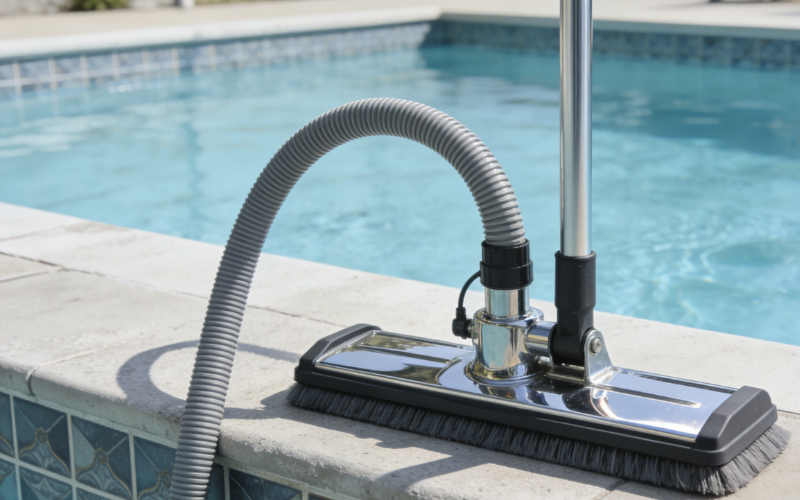

Step 1: Attach the Vacuum Head, Hose, and Pole
Attach the vacuum head to the telescopic pole, then connect one end of the hose to the vacuum head. Push each hose section firmly so the connection stays tight during cleaning. A loose joint here is one of the most common reasons suction drops mid-vacuum.
Before lowering the vacuum in, skim large debris off the pool surface to reduce strain on the pump and filter.
Pool size matters when choosing a hose. The vacuum hose should be at least 1.5 times the longest dimension of your pool so the vacuum head can reach every corner without dragging the hose taut.
The hose has two open ends. One end attaches to the vacuum head (this stays connected throughout the job). The other end is the "open end" referenced in the next two steps, the end that eventually connects to the skimmer.
Step 2: Remove All Air From the Hose
The hose must be fully filled with water before it connects to the skimmer. Air inside the hose blocks suction and is the most common reason a manual pool vacuum does not work.
The fastest method is the return jet method. With the pump running, hold the open end of the hose directly in front of a return jet. Water pushes through the hose and forces air out the vacuum head end. Watch for air bubbles at the vacuum head; once they stop, the hose is full.
If you cannot reach a return jet, slowly lower the hose section by section until it self-fills. This works but takes longer.
Once the hose is full, keep the open end underwater so air does not reenter before you connect it.
Step 3: Turn Off the Pump and Connect the Hose to the Skimmer
Turn the pump off before connecting the hose. This protects the pump from drawing in air during the swap and lets you adjust valves without back-pressure.
Remove the skimmer basket. Insert the water-filled hose end into the suction port at the bottom of the skimmer (also called the pool vacuum port). If your setup includes a vacuum plate, attach it to the hose end first, then place the plate over the skimmer basket. Vacuum plates let you keep the skimmer basket in place to catch large debris.
If the suction port is larger than the hose end, a hose-to-skimmer adapter (sold at most pool supply stores) creates a tight seal. A loose seal here breaks suction.
For pools with multiple skimmers, plug or close the unused skimmers and shut the main drain about 75 percent. This routes the full suction through the skimmer running the vacuum. Pool service technicians often use tennis balls to block the unused skimmer ports.
Step 4: Set the Multiport Valve and Start the Pump
Set the multiport valve to the "Filter" position for normal vacuuming. (The "Waste" position routes debris straight out of the system instead of through the filter; use it only for heavy debris or algae.) Start the pump and allow suction to stabilize for 30 to 60 seconds before moving the vacuum head.
Move the vacuum head slowly across the pool floor in overlapping rows, the way you would vacuum carpet. Fast motion lifts debris back into the water and weakens suction. Keep the vacuum head underwater the whole time; lifting it above the waterline draws air into the system.
Step 5: Shut Down and Reset After Vacuuming
When you finish vacuuming, turn off the pump first. Then disconnect the hose from the skimmer and reinstall the skimmer basket. If you closed unused skimmers or shut the main drain valve, reopen them to their normal positions. Empty the pump basket, since vacuuming usually fills it with debris. Check the filter pressure gauge; if it reads 8 to 10 PSI above the clean baseline, the filter caught a heavy load and needs a backwash or cleaning before the next cycle.
Rinse the vacuum head, hose, and pole with fresh water and let them dry before storage. Wet pool equipment grows biofilm fast.
How to Hook Up an Automatic Pool Vacuum
Automatic pool vacuums connect differently depending on whether they are suction-side or pressure-side. The connection point and pump requirements are different for each type.
Step 1: Identify Whether the Cleaner Is Suction-Side or Pressure-Side
Suction-side automatic pool vacuums connect to the suction side of the pool system, usually through the skimmer or a dedicated suction port. These cleaners are powered by the water flow created by the main pool pump.
Pressure-side pool vacuums connect to a return line and move using water pressure. Many pressure-side models require a separate booster pump to operate properly. Check the cleaner's documentation if you are unsure which type you have.
Step 2: Connect a Suction-Side Automatic Pool Vacuum
Secure the hose sections together and make sure they are filled with water using the same return jet method described above. Attach the hose to the skimmer suction port or a dedicated suction port, then place the cleaner in the pool.
Turn the pump on and let the cleaner start moving on its own. Suction-side cleaners rely on consistent water flow, so steady movement is a good sign the connection is working.
Some above-ground pools may not provide enough suction for certain automatic cleaners. Check pump flow rate against the cleaner's minimum requirement before purchase.
Step 3: Connect a Pressure-Side Pool Vacuum
Attach the cleaner to the designated return line. If the system includes a booster pump, confirm it is installed and running before starting the cleaner.
Turn on the main pump and booster pump as required. The cleaner should begin moving using pressurized water and collect debris in its attached bag or chamber.
Pressure-side cleaners are not suitable for all pool systems, especially pools without a compatible return line or booster pump.
When to Vacuum to Waste Instead of Through the Filter
Vacuuming to waste sends debris straight out of the system instead of through the filter. Use this setting in these situations:
-
Heavy debris on the pool floor after a storm or season opening
-
Algae buildup that would clog or overload the filter
-
Cloudy water with very fine particles that pass through the filter media
To vacuum to waste, set the multiport valve to "Waste" before starting the pump. Run a hose from the backwash port to a landscaped area away from waterways. Water levels drop during the process, so plan to refill the pool afterward.
Pool Vacuum Hookup Problems and How to Fix Them
Most pool vacuum hookup problems come from a few common causes. Each issue below includes a clear action that helps restore proper operation.
No Suction After Hooking Up the Vacuum
No suction usually traces back to one of these causes:
-
Air trapped in the hose: re-prime the hose using the return jet method, then keep the open end underwater until connection
-
Debris in the skimmer basket: remove the basket, clear leaves and debris, restart the pump
-
Clogged pump basket or suction line: turn off the pump, clean the pump basket, and check for visible blockages
-
Valve positions splitting suction: close unused skimmers and the main drain, route suction to the vacuum line
Pool Vacuum Stops or Moves Slowly
Slow or uneven movement usually comes from:
-
Dirty filters or baskets: clean or backwash the filter; empty skimmer and pump baskets
-
Restricted circulation from partially closed valves: open the working line fully so steady flow reaches the vacuum
-
Debris lodged inside the vacuum head or hose: disconnect, clear, reconnect
-
Unstable pump output: confirm the pump primes correctly and water flow stays steady
Vacuum Head Floats or Will Not Stay Down
Some lightweight vacuum heads need help staying flat on the pool floor. Check that you have the right vacuum head for your pool type (vinyl-liner heads are lighter; concrete-pool heads have brushes and more weight). If the head still lifts, a small weight bar or a sand-filled segment in the hose can help hold it down.
Long-Term Pool Cleaning Alternatives
Manual pool vacuum hookups require attention to several variables at once: hose preparation, suction direction, valve settings, and filter condition. Pool owners who want less setup work have three main alternatives.
Automatic suction-side cleaners still connect to the pool system, but once installed they move on their own. Setup variables (air in hose, valve position, filter condition) still apply.
Pressure-side cleaners rely on a separate return line and often a booster pump. They reduce wear on the main filter but require additional plumbing.
Cordless robotic pool cleaners operate independently from the pool circulation system. There is no hose connection, no skimmer setup, no valve adjustment. The cleaner runs its cycle and collects debris in an internal filter basket. The iGarden Pool Cleaner K Pro 150 covers floor, walls, and waterline in one cycle, with scheduled runs that catch debris before it bonds. The iGarden Pool Cleaner KN55 is a lighter cordless option for everyday surface maintenance.
iGarden Pool Cleaner K Pro Series
Brilliant Sheen & Smart Touch Control and App Control. A Turbine-Grade Impeller & An Optimized Flow System. Intelligent Path Optimization & Adaptive Mobility
Related reading: how to vacuum a pool · how to remove dirt from bottom of pool without vacuum
FAQs
What Is the Best Way to Connect a Pool Vacuum Hose
The return jet method. Hold the open end of the hose in front of a return jet while the pump runs; the water pushes air out through the vacuum head end. Once bubbles stop, the hose is ready to connect to the skimmer.
How Do I Plug In a Pool Vacuum
Pool vacuums do not plug into electrical outlets. The "plug in" refers to inserting the water-filled hose end into the suction port at the bottom of the skimmer, beneath the skimmer basket. Some pools have a dedicated vacuum port on the side of the skimmer wall instead.
How Do You Connect a Pool Vacuum to the Pump
A pool vacuum does not connect directly to the pump. It connects to the skimmer or a dedicated suction port. The pump pulls water through the suction line and that suction powers the vacuum. The vacuum hose creates a continuous water path from the vacuum head through the skimmer to the pump.
How Do I Attach a Pool Vacuum to an Above-Ground Pool
Above-ground pools usually have a single skimmer and simpler plumbing. The hose connects directly to the skimmer suction port without a vacuum plate in most cases. Hose preparation (fully filled with water) matters more on above-ground pools because the single suction point is less forgiving of air leaks.
How Long Should a Pool Vacuum Hose Be
At least 1.5 times the longest dimension of the pool. A 30-foot pool needs at least a 45-foot hose so the vacuum head can reach every corner without dragging the hose taut. Pool vacuum hose extensions are available if you need to add length without buying a new full hose.
How Do You Set Up a Pool Vacuum Step by Step
Five steps:
(1) attach the vacuum head to the pole and connect the hose,
(2) fill the hose with water using the return jet method,
(3) turn off the pump and connect the water-filled hose to the skimmer suction port,
(4) set the multiport valve to "Filter" position,
(5) turn the pump on and vacuum slowly. For multi-skimmer pools, close unused skimmers and the main drain about 75 percent first.
