A pool filtration system is the loop of equipment that pulls water out of the pool, cleans it, and sends it back. The pump moves the water, the filter catches debris, and the skimmer and return jets keep things flowing in the right direction. When the system is sized right and maintained, the pool stays clear without much effort. When something is off, the symptoms show up fast: cloudy water, weak return flow, or rising filter pressure. This guide walks through the components, the cycle, and the maintenance that keeps the whole loop healthy.
What Is a Pool Filtration System?

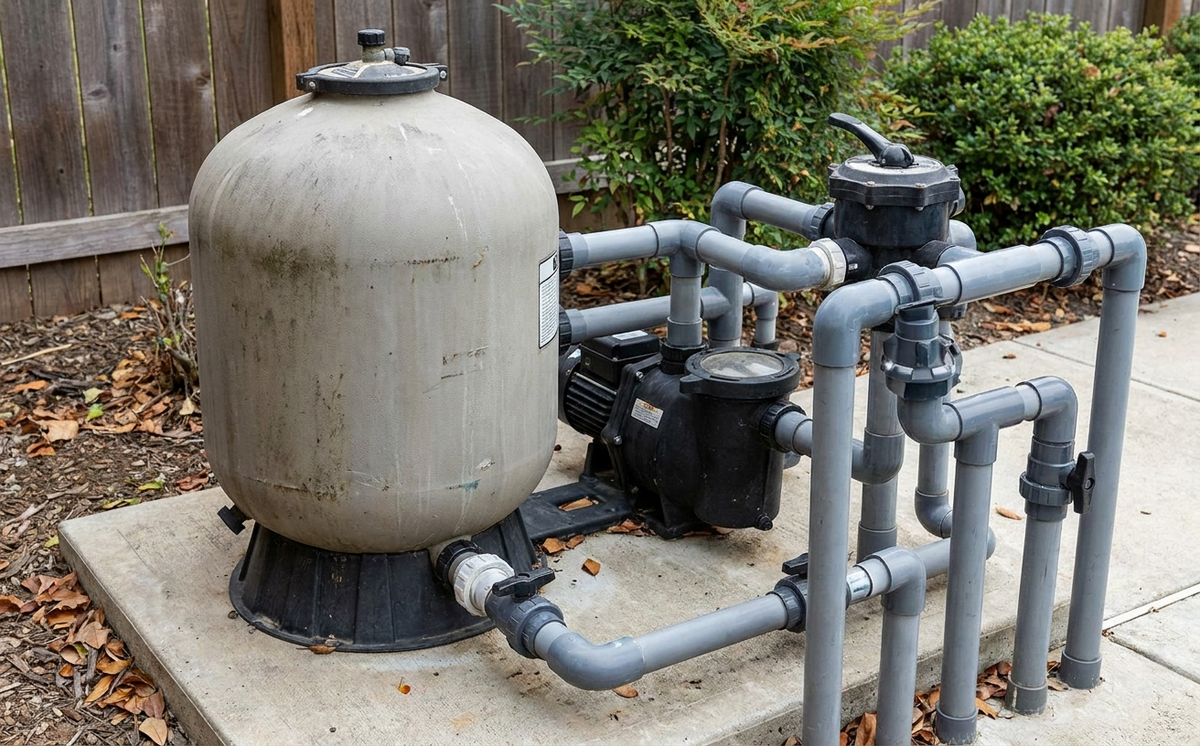

A pool filtration system is the full plumbing and equipment loop that circulates pool water continuously. The filter is just one part of it. The whole system includes a pump that creates flow, intake points like the skimmer and main drain, a filter that traps particles, and return jets that send clean water back. Most people use the words filter and filtration system interchangeably, but the filter is the single component that captures debris, while the filtration system is everything working together to move water through that filter.
Think of it like the kidneys for the pool. Water cycles through constantly, picking up particles and chemicals on the way out and getting cleaned and rebalanced before it returns. If any part of the loop fails, the whole pool feels it within hours.
The Main Components of a Pool Filtration System
Most residential filtration systems have six core parts.
The skimmer is the rectangular opening built into the pool wall just below the deck. It pulls water from the surface, where leaves, bugs, sunscreen, and floating debris collect before they sink. The water level should sit about midway up the skimmer mouth for it to work right.
The main drain sits at the deepest point of the pool floor. It pulls water from the bottom, where heavier debris and cooler water settle. Most inground pools have a main drain, while above-ground pools and many newer fiberglass inground pools skip it entirely and rely on skimmers and return placement to keep water moving from the bottom up.
The pump is the heart of the system. An electric motor spins an impeller that creates suction on the intake side and pressure on the output side. The suction side pulls water from the skimmer and main drain; the pressure side pushes water through the filter and back to the pool.
The strainer pot is the clear basket on the front of the pump. It catches large debris like leaves, twigs, and hair before they reach the impeller. Empty it any time you see it filling up. A clogged strainer pot starves the pump and makes everything downstream less effective.
The filter is where actual particle removal happens. Sand, cartridge, and DE filters are the three common types, each capturing different particle sizes and using different cleaning routines. The filter sits after the pump on the pressure side, so water arrives under flow.
|
Filter Type |
Particle Capture |
Maintenance |
Best For |
|
Sand |
20 to 40 microns |
Backwash |
Larger inground pools |
|
Cartridge |
10 to 20 microns |
Hose off cartridge |
Above ground, small inground |
|
DE |
3 to 5 microns |
Backwash and recoat |
Owners who want the clearest water |
For a deeper comparison and how to choose between them, see our guide on pool filter types.
The return jets are the small fittings on the pool wall opposite the skimmer. Clean water from the filter exits here and pushes circulation across the pool. Their angle matters: aimed slightly down and toward the skimmer, they create a slow rotation that keeps the entire pool moving.
How the Filtration Cycle Works
Water moves through the system in three stages, all driven by the pump.
The first stage is intake. The pump creates suction, which pulls water through the skimmer at the surface and the main drain at the bottom. Both lines meet at the strainer pot, where large debris drops out before reaching the pump impeller.
The second stage is filtration. The pump pushes water through the filter under pressure. The filter media, whether sand, pleated cartridge, or DE coated grids, traps particles down to the filter's rated micron size. A heater or salt cell often sits on this same pressure side, after the filter and before the return.
The third stage is return. Clean filtered water exits the filter and travels back through the return lines to the jets, which push it into the pool. The angled jets keep water moving in a continuous loop, which is what stops dead zones from forming and helps chemicals distribute evenly.
How Long to Run Your Pool Filtration System
Most residential pools need 8 to 12 hours of pump runtime a day during swim season. The exact number depends on pool size, water temperature, and how heavily the pool is used.
The reason for that range is turnover rate, the time it takes for the entire volume of pool water to pass through the filter once. Most residential pools target a turnover every 6 to 8 hours, which works out to two or three full cycles in 24 hours. Running 8 to 12 hours a day is usually what it takes to hit that.
Heavy use, leaves, or warm water push runtime up. Cooler weather, light use, or a covered pool can get by on shorter runs. Variable speed pumps make the math easier; running longer at lower speed costs less and filters more thoroughly than short bursts at high speed.
If the water still looks hazy after a normal day's run, increase the runtime before reaching for chemicals. Doubling filter time often clears mild cloudiness within 24 hours.
How to Maintain a Pool Filtration System
Maintenance falls into three rhythms.
Weekly tasks keep flow strong. Empty the skimmer basket and the strainer pot, both of which fill faster than people expect during leaf season. Check the pump pressure gauge against the clean baseline. A few psi above baseline is normal as debris accumulates; 8 to 10 psi above signals it is time to clean the filter.
Monthly tasks keep the equipment from drifting out of spec. Inspect the pump lid o-ring for cracks and grease it if it looks dry. Check return jet flow at each fitting; weak flow on one side often points to a partly blocked line. Test water chemistry weekly, but a deeper monthly check on calcium hardness and CYA helps catch slow shifts.
Seasonal tasks matter for system longevity. Backwash sand and DE filters every few weeks during heavy use, and replace cartridge filters every 2 to 5 years. Replace sand media every 5 to 7 years; the grains lose their edges and trap less effectively. Open the pump and clear seals, gaskets, and fittings at season end before winterizing.
Where Robotic Pool Cleaners Fit Into the System
A pool filtration system is great at one thing: catching particles in moving water. What it cannot do is reach the floor, the walls, or the corners where return jets do not push. Anything that settles or sticks stays there until something physically moves it. That is the job a robotic pool cleaner does, and it sits alongside the main filtration system rather than replacing any part of it.
Robotic cleaners run on their own power and have their own internal filter, so they capture debris before it reaches the main pool filter. The main filter ends up running on a lighter load, which extends time between backwashes and slows the rise of filter pressure. The two systems work in parallel and split the work between fine suspended particles and visible settled debris.
If your filtration system handles the small stuff well but the floor and walls still need attention, the iGarden Pool Cleaner M1 AI series is a fit worth looking at. It uses a dual-layer filtration system that captures both larger and finer debris in one pass, and a 4K AI camera that picks out dirty zones rather than running a fixed pattern. Models run from M1-AI 55 through M1-AI 90 depending on how long a single cycle needs to last. For pools where the main system is sized right but the visible debris keeps coming back, that combination tends to do more than running the pump longer.
iGarden Pool Cleaner M1-AI Series
Dual-Force Flow System, Extreme Suction Power, Dual-Layer Filtration System, Maximum Cleaning Effciency, Dual-Grip Traction System, Superior Obstacle Climbing, Ultra-long 10-hour runtime, Uniterrupted Cleaning Performance, AI Timer: up to 21 Days Maintenance-Free, Made for Complex Pools, Smart 3D "S" path
FAQs
How long should a pool filtration system run each day?
Most residential pools need 8 to 12 hours of pump runtime a day during swim season. The goal is two to three complete water turnovers in 24 hours. Heavy use, warm weather, or leafy yards push runtime up; covered or lightly used pools can run shorter.
How much does a pool filtration system cost?
A complete residential filtration system usually runs $500 to $3,000 for the equipment, depending on filter type and pump size. Sand systems sit at the lower end, around $500 to $1,200. Cartridge systems run $700 to $1,800. DE systems are the most expensive at $1,200 to $3,000. Professional installation adds $500 to $1,500 on top, depending on plumbing complexity. Variable speed pumps cost more upfront than single-speed but save enough on electricity to pay back within a few seasons.
What is the difference between a pool filter and a pool filtration system?
The filter is one component, the cylindrical tank that traps particles. The filtration system is the entire loop, including the pump, skimmer, main drain, strainer, plumbing, and return jets. The filter does the cleaning, but the system does the moving.
How do I know if my pool filtration system is working properly?
Three signs tell you the system is healthy: clear water within a day after heavy use, balanced flow from every return jet, and pressure gauge readings within 5 to 8 psi of the clean baseline. Cloudy water, weak return flow, or steadily climbing pressure are the early warnings of a problem.
Can I run a pool without a filtration system?
Not for long. Without circulation and filtration, water clouds within a day or two, sanitizer stops distributing evenly, and algae starts within days. A filtration system is what makes a pool a pool rather than a pond.
How often should I backwash my pool filter?
Backwash sand and DE filters when pressure rises 8 to 10 psi above the clean baseline, not on a fixed schedule. That usually works out to every 2 to 4 weeks during swim season. Cartridge filters do not backwash; you pull and rinse them at the same pressure trigger.
Does a pool filtration system kill bacteria?
No. The filter removes physical particles. Sanitizer, usually chlorine or salt-generated chlorine, is what kills bacteria and algae. The filter and the sanitizer work together, and weakening either one undoes the other.
