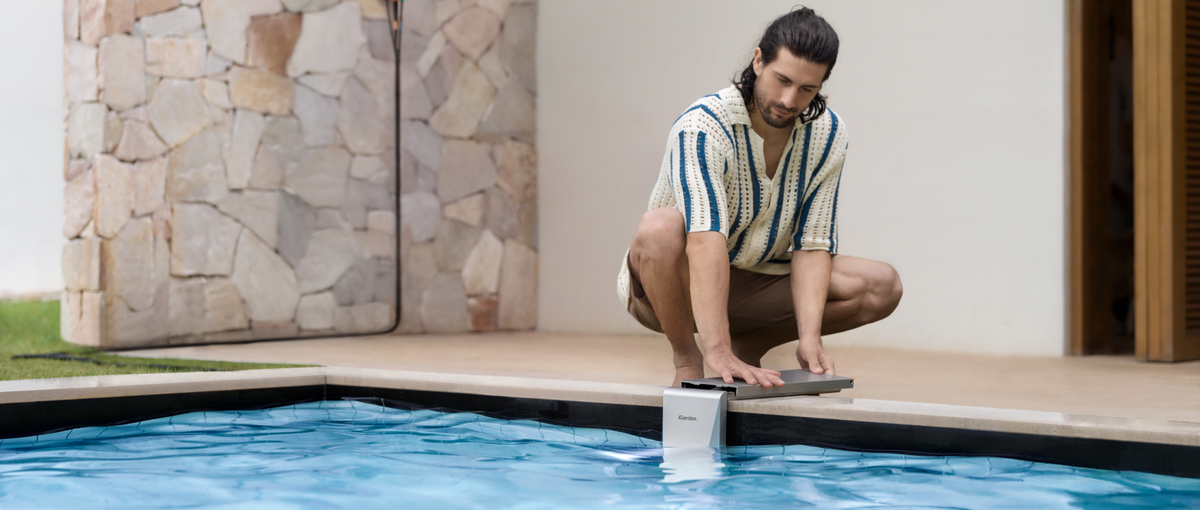

Transforming a standard backyard pool into a professional-grade training center used to require major construction. However, modern deck-mounted solutions like the iGarden Swim Jet P Series have streamlined the process.
iGarden offers professional installation services backed by a three-year warranty for complete peace of mind. You can choose to purchase iGarden's installation services, follow the tutorial below for a DIY approach, or provide these instructions to your pool builder.
If you are planning to install this system, precision is key. Based on the official documentation, unboxing contents, and detailed visual guides, we have compiled a complete walkthrough to help you get from the box to the water safely and efficiently.
Important Safety & Compatibility Checklist
1. Electrical Safety:
- U.S. Market: Installation and setup must be performed by a licensed electrician or an installer authorized by iGarden.
- AU / EU Market: Users can simply plug it into an AC power outlet of appropriate wattage; no additional electrical work is required.
2. Pool Compatibility:
Confirm your pool meets these minimum dimensions:
- Minimum Width: 10 ft
- Minimum Length: 16.5 ft
- Minimum Depth: 3.5 ft
Phase 1: Preparation & Tool Checklist
To guarantee a secure and professional-grade installation, we recommend preparing a standard toolkit. "Service" does NOT include any site ("yard" or "pool") modifications, material additions, etc., beyond the Standard Installation Service. For more details, kindly click here to check the iGarden standard installation of the Swim Jet P Series. While iGarden provides every piece of specialized hardware you need (brackets, anchors, and screws), having these common tools on hand will ensure the process goes smoothly:
Recommended Personal Protective Equipment (PPE):
- Protective Gloves: To ensure a firm grip on heavy components.
- Dust Mask: Essential for comfort when drilling into concrete or stone decks.
Standard Installation Tools:
- Hammer Drill: Equipped with an 8mm Drill Bit for the deck anchors.
- Drill Driver Kit: specifically with a Crossed-Head Tip.
- Level: To ensure the unit sits perfectly flat for optimal performance.
- Steel Measuring Tape & Marker: For precision alignment using the template.
- Multimeter: To verify electrical voltage and safety during the final check.
Phase 2: Unboxing the Ecosystem
The box contains specific components for structural integrity and aesthetic finishing. Here is the complete inventory you need to verify:
1. The Core System
- The Jet: The main turbine propulsion unit.
- Control Box: The external inverter/control unit that mounts to a wall.
- Remote Control: A wireless remote for adjusting speed from the pool.
2. Specialized Brackets
- Mounting Bracket (Folding): This large rail system anchors the main Jet to the pool deck. Its folding design allows for easier maintenance access.
- Mounting Bracket (Simplified): A smaller plate used to mount the Control Box to a wall or post.
3. Aesthetic Wire Management (Crucial for a Clean Look)
- Front Wire Cover (Long + Short): These curved covers hide the cables at the connection point, ensuring no wires are visible near the water.
- Upper Wire Cover: A long rectangular metal housing that conceals the cables running along the top of the mounting bracket.
4. Setup Accessories
- Making-off Template: Do not guess your drill holes! Use this physical template to mark the deck accurately.
- RS-485 Cable: The communication cable (identifiable by blue connectors) used for system data linkage.
- Accessory Kits: Includes the necessary yellow/silver expansion bolts and screws.
Phase 3: Poolside Installation (Detailed Step-by-Step)
This is the most critical phase. Follow these steps exactly to ensure stability and proper water flow.
Step 1: Deck & Bracket Preparation
- Deck Requirement: Ensure the deck is wide enough, flat, and level.
- Attach Pads: Attach the shock-absorbing pads to the bottom of the bracket.
- Orientation: Place the bracket so the end with more holes is on the deck. Ensure the pads sit flush and the bracket stays absolutely perpendicular (90 degrees) to the water.
- Template: Place the Making-off Template on the deck and mark your holes.
Step 2: Precision Drilling
- Marking: Ensure you have marked at least two drilling holes for secure mounting.
- Depth Control: Use an 8mm bit. It is recommended to mark the anchor depth on the bit itself.
- Drill Depth: Drill 1–2 mm deeper than the anchor's actual length.
- Technique: Drill straight down and slightly widen the hole at the top to make inserting the anchor easier.
Step 3: Mounting & Leveling
- Placement: Lower the unit and ensure it lines up perfectly with the drilled holes.
- Leveling: Use the foot pad to level the unit, ensuring it is stable.
- Securing: Tighten the wing screws to lock the position.
- Jet Alignment: Mount and align the Jet unit to the bracket.
Step 4: Water Depth & Final Adjustments
- Jet Depth: Adjust the unit so the center of the Jet’s outlet is 10–12 inches below the water surface.
- Water Level Rule: Maintain the water level at ≤ 21 cm from the deck edge (approx. 11 cm above the unit) for optimal performance.
Step 5: Aesthetic Finishing
- Front Cover: Install the front cover and secure it with side screws.
- Upper Wire Cover: Close the Upper Wire Cover over the bracket and tighten the side screws.
- Final Secure: Ensure all four screws are tightened to lock the covers in place.
Phase 4: Control Box Installation & Electrical Setup
This final phase connects the brain to the muscle. Adhering to the template and color codes is critical.
Step 1: Positioning & Drilling
- Select Location: Find a wall or post away from direct water splashes.
- Use the Template: Take the specific Control Box Making-off Template (included in the box) and place it against the wall.
- Mark Holes: Use a marker to trace the drill spots through the template paper.
- Drill: Remove the template and drill the holes using the appropriate bit for your wall material.
Step 2: Mounting the Box
- Insert Anchors: Insert the expansion anchors into the drilled holes.
- Mount: Place the simplified bracket or the box itself (depending on model specifics) over the anchors, add screws, and tighten them securely to mount the Control Box.
Step 3: Connecting the Cables
- Quick-Release: Attach the quick-release connectors to the bottom of the Control Box.
- Color Matching (Critical): You will see three distinct cables/connectors. You must match them by color: Black, Orange; Blue. Ensure each color band on the cable matches the corresponding port color.
Step 4: Connecting to Power (Regional Difference)
- U.S. Model: The box includes a power cord with GFCI. However, per safety regulations, wiring work requires a licensed electrician.
- AU / EU Model: The box includes a power cord with an RCD. You can simply plug it into an appropriate AC power outlet.
Dive Into Your New Lifestyle
Congratulations! You have successfully transformed your standard backyard pool into a dynamic, endless swimming experience.
The hard work is done. By following this guide, you’ve ensured a secure, professional installation that blends seamlessly with your pool deck. Now, it's time to put away the tools and grab your swimsuit. With the iGarden P Series installed, you no longer need to drive to the gym or do endless flip-turns. Whether you are training for a triathlon or just enjoying a fun current with the family, your new aquatic lifestyle begins today.
Welcome to the future of pool fitness.
Need further assistance? Contact iGarden support at support@igarden.ai.
